● Angle of Preparation, 0º to 60º
● Excess Weld Metal (capping size)
● Depth of Undercut
● Depth of Pitting
● Fillet Weld Throat Size
● Fillet Weld Length
● Misalignment (High-Low)
|
Model No.
|
Measurement
|
Range
|
Graduation
|
Accuracy
|
|

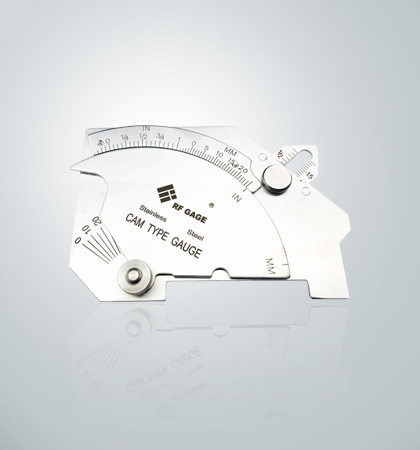

WG-04BCG-A
|
crown height
|
0-25mm (0-1")
|
1mm (1/16")
|
±0.5mm
|
|
fillet weld leg height
|
0-25mm (0-1")
|
1mm (1/16")
|
±0.5mm
|
|
|
misalignment (high-low)
|
0-25mm (0-1")
|
1mm (1/16")
|
±0.5mm
|
|
|
undercut depth
|
0-2mm (0-1/8")
|
1mm (1/16")
|
±0.5mm
|
|
|
fillet weld throat size
|
0-20mm (0-3/4")
|
1mm (1/16")
|
±0.5mm
|
|
|
angle of preparation
|
0-60°
|
5°
|
±1°
|
|
|
length
|
0-60mm (0-2")
|
1mm (1/16")
|
±0.5mm
|
|
|
45° angle
|
—
|
—
|
±1°
|
